Trees

Trees vs Graphs

1. Trees are special type of graphs
2. Must be connected
3. Must be acyclic
4. Must have exactly n-1 edges, where n is number of nodes.
5. Follows a heirarchial structure with a special root [ source ] node.

• Is a abstract DS
• datas are in structures called nodes
• Has a primary node called the root.
• Branch nodes are called sub-trees
• Nodes that have no descendents are called leaf or terminal nodes
  The other nodes are called non terminal / internal nodes
• Each node is the parent or predecessor of its sub-tree
• Every node in a tree has "zero" or more children or sucessors
• One or more of the sub-trees may have no element and are called empty sub-trees
• Siblings are all the nodes that have the same parent
• Level is the rank of heirarchy and root node is at level 0.
  BUT the height does count all levels.
• Sequence of consequetive edges is called a path.
• If a tree has n nodes - there are also n subtrees
• The Depth or Height of the tree is the number of nodes in the longest path from the root node. OR
  maximum number of nodes possible in a path starting from the root node.
• A set of Disjoint trees is called a forest.
  Two trees are said to be disjoint if they do not share a common vertex.
  So even if there are multiple trees, if they share any of the nodes, it won't be considered as a forest.

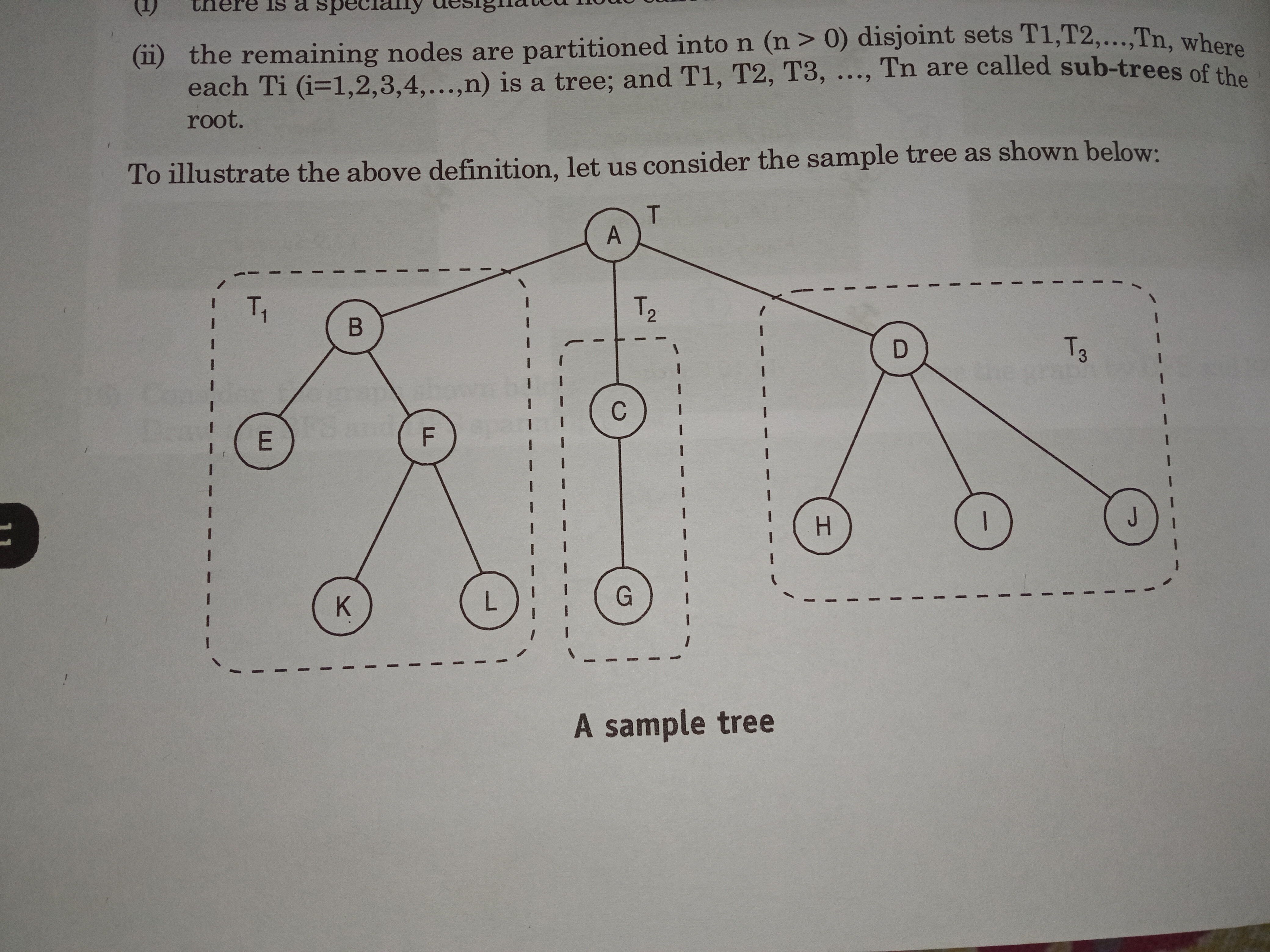

• Tree Representation ex:

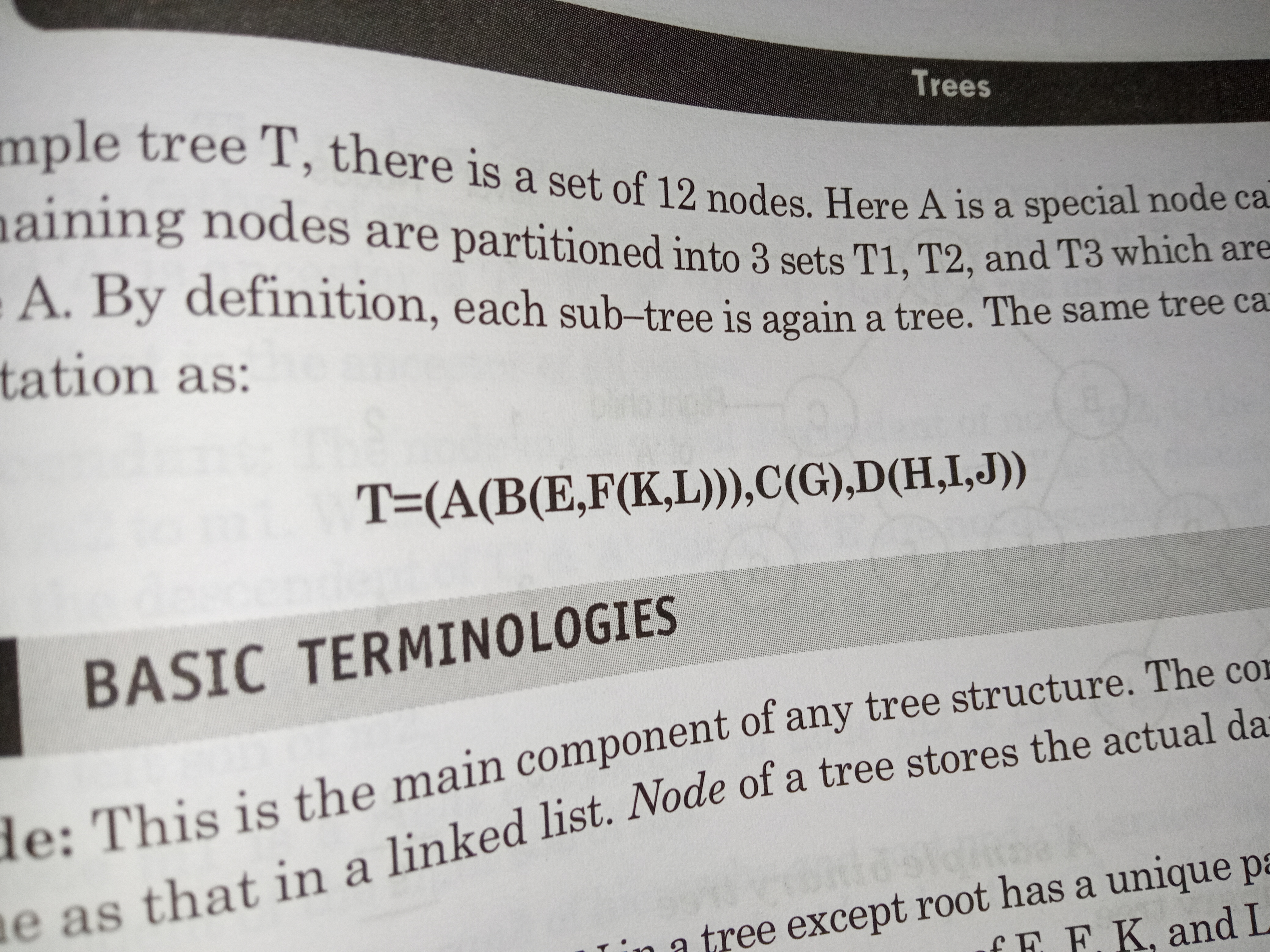

• Tree Notation ex:
• Also Trees here are named after botanical notations so names like Ancestor, Descedant do apply.
• Extras: Going from leaf to root is called climbing, going from root to leaf is called descending.

Binary Tree

1. Could either be an empty binary tree with no nodes
   NULL Tree without a node.
   WHEREAS a tree always has atleast one node.
2. A tree with a special designated node called the root and
3. Remaining nodes forming upto only two disjoint binary tress called left-subtree and right-subtree
   WHEREAS a tree can have n (n>0) disjoin subtrees.
4. A binary tree can have atmost two childrens
   WHEREAS a tree can have more than two

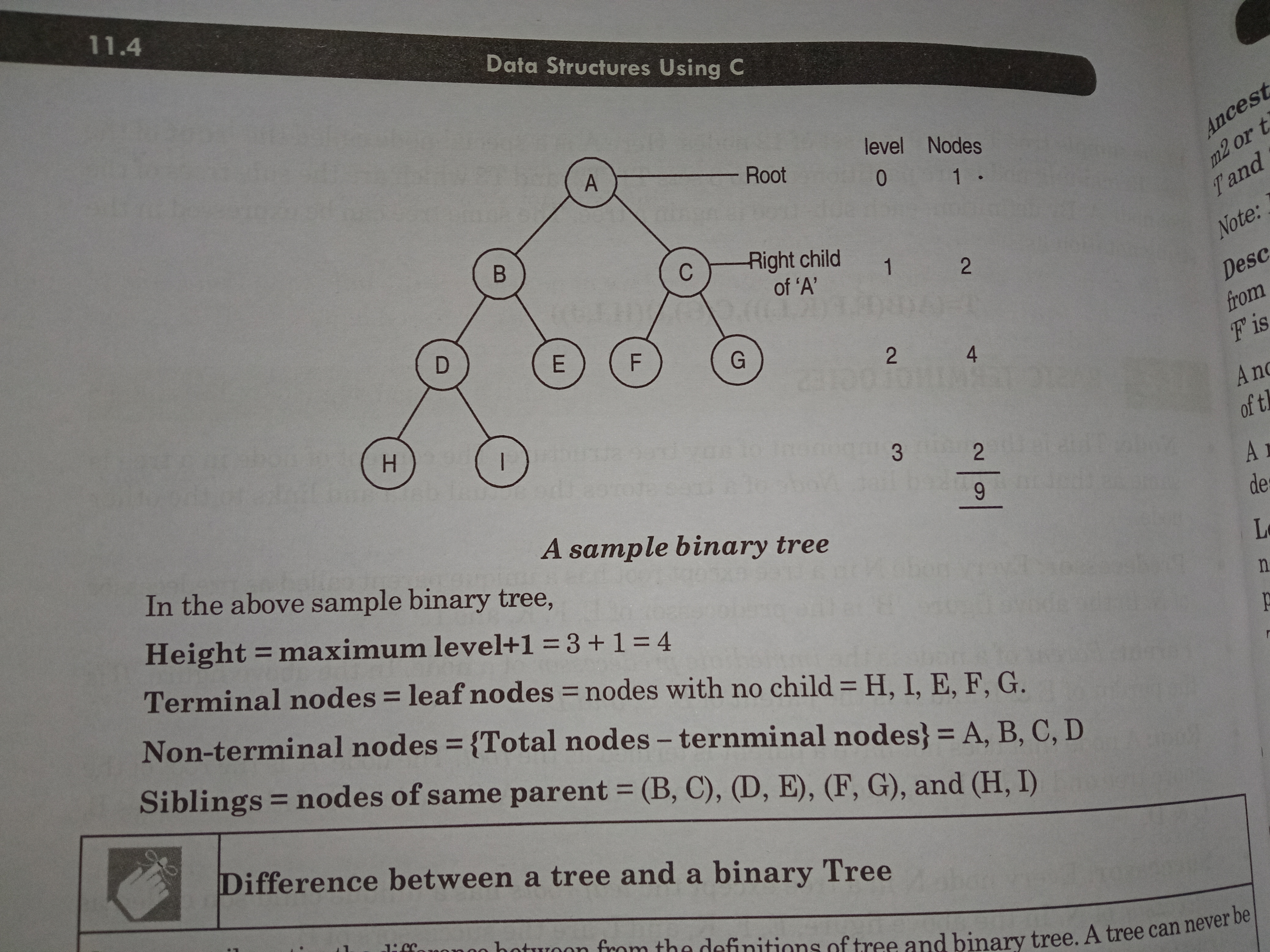

5. ex:

Binary Tree formule

1. no. nodes at level l = 2^l [ ONLY HOLDS GOOD FOR COMPELETE/FULL BINARY TREE]
2. Total no. nodes = 2h+1-1 . where 'h' is the height of the tree
   Remember the difference between a level[0] and a height[1]. But in most cases That I saw they take height to start at 0 as well i.e 0 @ root
3. Minimum no. posisble nodes for a binary tree of height h is h
4. If all internal nodes have exactly two childrens then -
   number of leaf nodes = number of internal nodes + 1
5. Total number of binary trees possible with n nodes is [1/(n+1)]*[2NCn].
   NCr = N!/r!(n-r)!.

Definations

Link

This is a pointer to the node of a tree.

Degree

The number of childrens a particular node has

Indegree

The number of edges coming into a node from top

Outdegree

The number of edges going out of a node to bottom

Left-skewed Binary Tree

If there is only a left-subtree

Right-skewed Binary Tree

if there is only a right sub-tree

Further Types [under binary tree]

Full[Strict] Binary Tree

Follows the degree-rule , i.e All the nodes , except the last must have a degree of 0 or 2

Complete Binary Tree

1. That contains maximum number of possible nodes at each level , except the last level. AND
2. The last level must be left composed

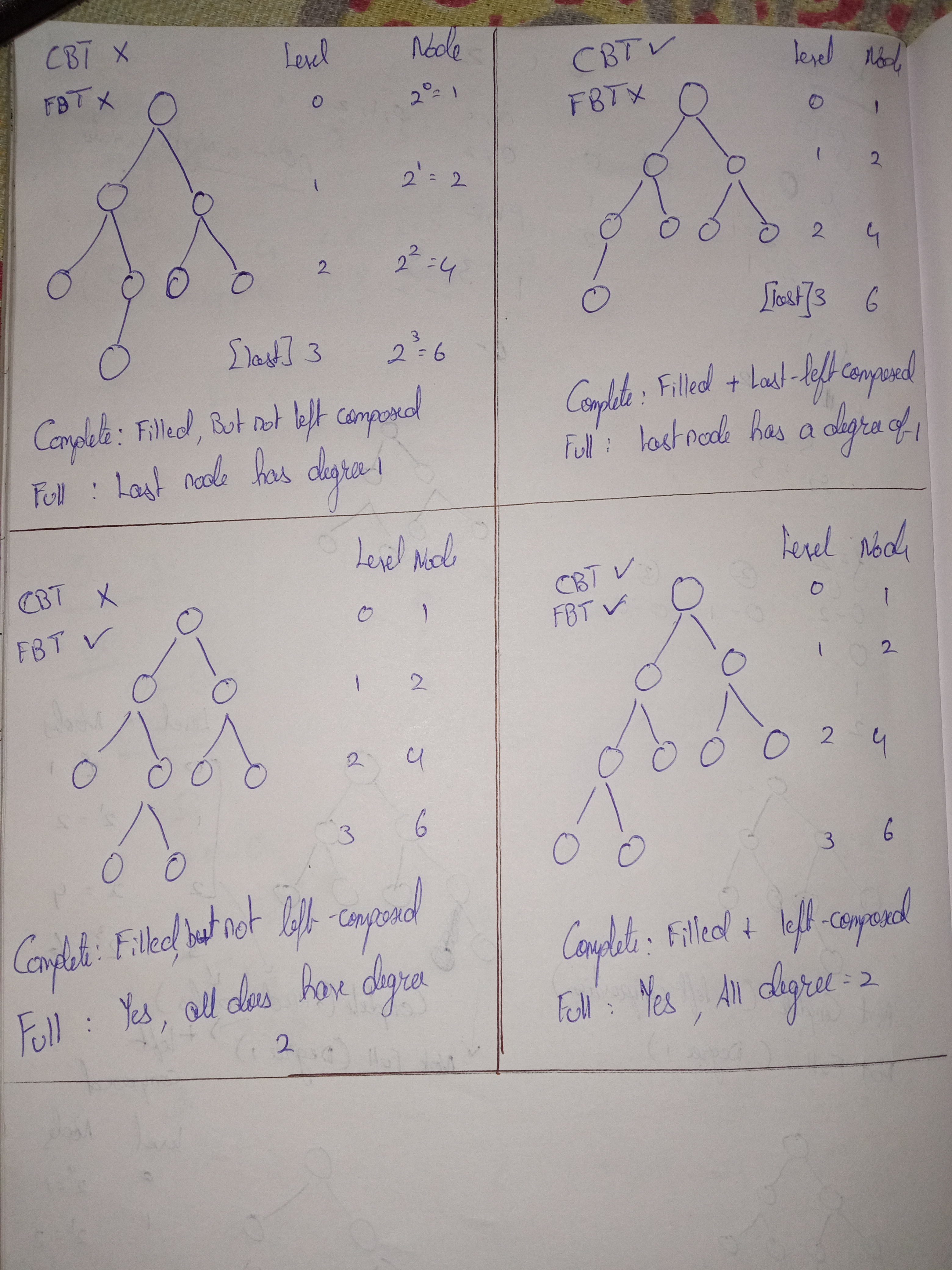

Full[Strict] vs Complete :

Almost complete binary tree

1. All the levels of the nodes should be completely filler , but possible for the last level
2. The last level should be filled from left to right
3. The last level may not be completely full, but there should be no gaps before the missing node.

Perfect Binary Tree

Completed filled nodes at all levels

Representation of Binary Trees

• Sequential Representaion [array]
• Linked List Representation
• Parent Pointer

Sequential Representation [Arrays]

1. Uses a 1-D array
2. Requires numbering of the nodes. Starting from node level 0, 1 and so on.
3. The nodes are numbered from left to right.
4. We trace in the above way creating a Complete binary tree and leaving the ones that don't exist empty
5. Since this is a Complete binary tree [ we know that evey node has exactly 2 nodes ].
   The following properties hold good . And that is how we determine the relations between them.
   1. The father of kth index is at index (n-1)/2.
      Where n is the index in the array. And K is the numbering in the graph.
   2. The left child of kth index is at index 2*K.
   3. The right child of kth index is at index 2*k+1.

Advantages

1. It is suitable for Perfect Binary Tree or [negotiable] compelete binary Tree or nearly Complete binary tree
2. It is efficient and convenient representation provided that the tree does not go for changes such as insertion,deletion etc.

Disadvantages

1. It is not ideal for other than complete binary tree. That is, it is not so suitable for normal binary tree.
2. The size of the tree structure is predictable, this representation uses static allocation and leads to wastage of memory space.
3. Insertion and Deletion of nodes cannot be performed easily. It requires the movement of many nodes to reflect the change in the level numbers of the remaining nodes.

Linked List Representation

1. Solves the problem of unnecessary memory consumption by sequential representation
2. has 3 fields
   1. Info
   2. Left link
   3. Right Link

Advantages

1. Efficient use of computer memory and computer time.
2. This is suitable as a tree is unpredictable and Linked list uses DMA
3. Insertion and Deletion is much easier.
   The insertion is straight forward , while the deletion is done by a pointer change.

Parent Pointer

1. Same as the Linked List representation , but also stores the parent address in each node
2. Useful when an algorithm needs upward traversal
3. Since it stores extra pointer - that is not a commonly efficient usage.

Traversal

1. Preorder
2. Inorder
3. Postorder

Binary Search Tree

1. Each node is is greater than or equal to every node of its left subtree
2. Each node is is lesser than or equal to every node of its right subtree
3. While insertion - we only insert in the terminal levels.

Summary

• represents relationship between elements as records or nodes
• Balanced Binary Tree is one where the difference in no. nodes in the left-subtree and right-subtree is <=1
• only left-subtree left skewed binary tree . . .
