Graphs

Used in

Graphs are a set of finite points called vertices or nodes.
Some of them are connected to others via lines or arrows called edges or arcs

Types

Based on connection

Complete Graphs
Has an edge from all points to all points
  1. Has n(n-1)/2 edges
  2. if zero nodes, a trivial graph null graph exists
  3. if one node, a trivial graph singleton graph exists
Connected Graphs
Has a path between every pair of vertices
  1. A path is a sequence of vertices where each consequetive pair is connected by an edge.
  2. Number of edges in a path is called as the length of the path
  3. if there are no repeated vertices - Simple path
NOTE: If a graph has an edge bw every pair of vertices: if its direct edge: complete , indirect : connected graphs.
If its a digraph - strongly connected graph
If its an undirected graph - connected graph
Unfortunately undirected graph cannot be a strongly connected graph. . .
Ikr it ain't its mistake - it just has ability which is termed as disability here .
It is essential for a strongly connected graph to have DIRECTED edges towards and from all vertices in a graph
If its a digraph with one pair having one a sinlge directed edge between them - weekly connected graph

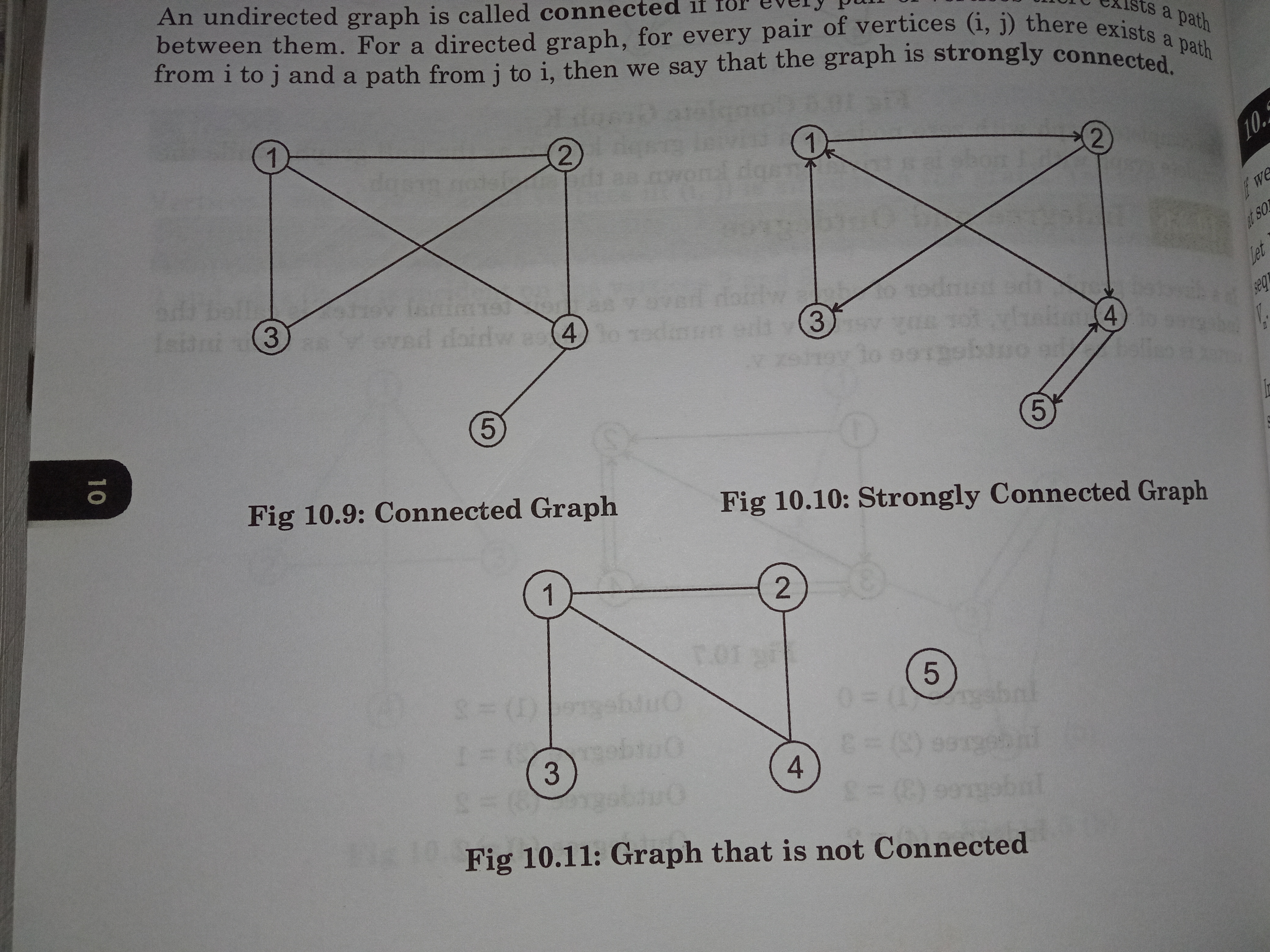

ex: types of connected graphs
Bi-Connected Graph
  1. A connected graph
  2. No articulation point in the graph
Disconnected Graphs
A graph where atleast one pair of vertices have no path connecting them.
Graph with isolated vertices
If there is one node/vertex such that it has no edges or arcs to any other node/vertex of the graph,
That node is isolated node .

Based on edges

Directed Graph aka Digraph
A graph whose edges are directed / "one-way".
  1. Represented as G=(V,E)
  2. V is a set, whose elements are called vertices or notes
  3. E is a set, whose elements are ordered pairs of elements of V, called edges or arcs
  4. If exists, directed edge (v,e) . v is called TAIL and e is called HEAD
    v->w , which is distinct from w->v.
  5. Eg: example for digraph
Unidirected Graph
A graph whose edges are undirected / "two-way".
  1. Represented as G=(V,E)
  2. V is a set, whose elements are called vertices or notes
  3. E is a set, whose elements are unordered pairs of distinctelements of V, called edges or arcs
  4. If exists, undirected edge (v,e), denoted by v-w , same as w-v

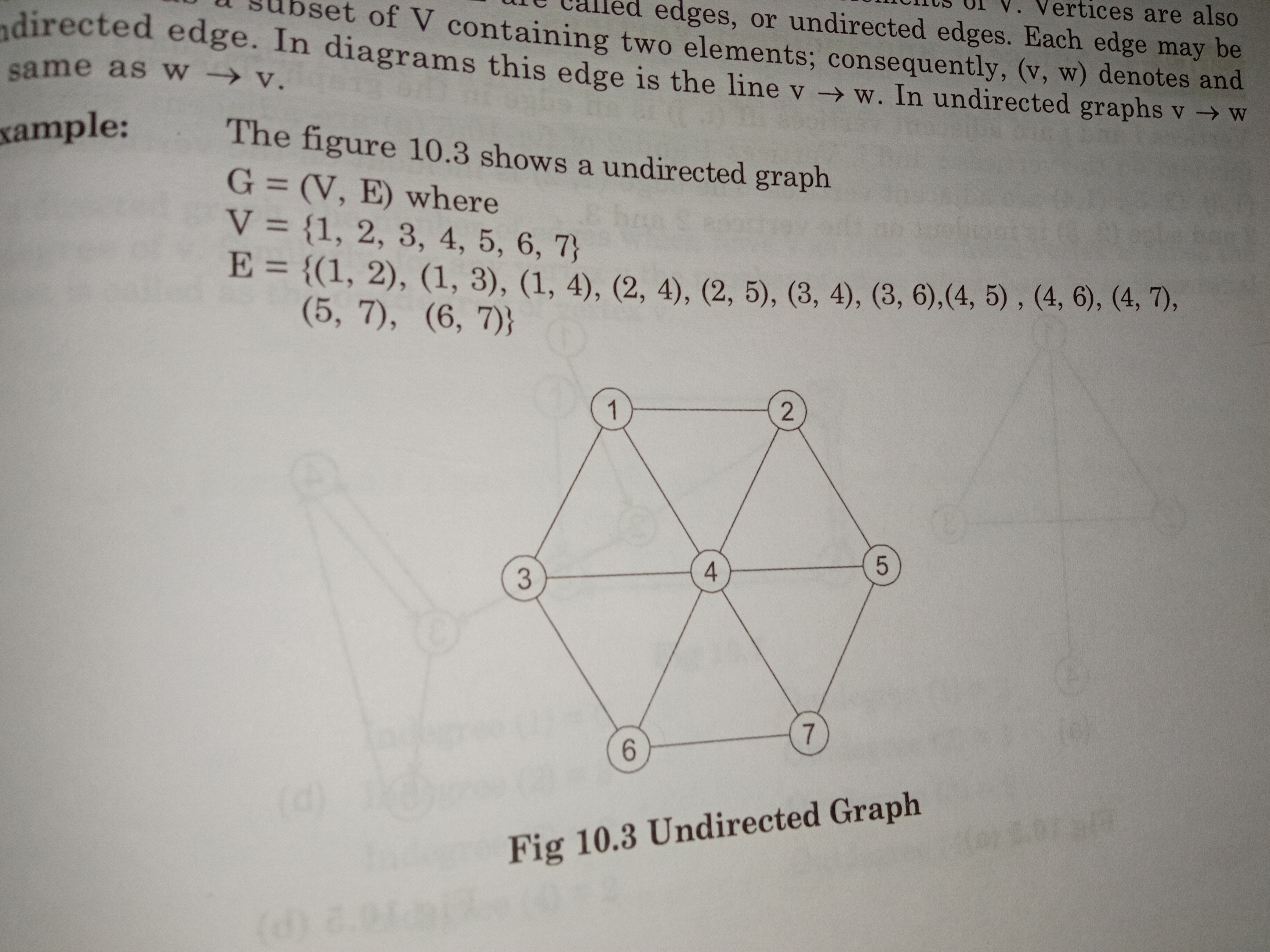

  5. Eg: example for undirected graph
SubGraph
A graph whose vertices and edges are subset of another graph is called a subgraph if G=(V,E) then subgraph could be G1=(V1,E1)

Graphs that have weghts are called as weighted graphs else non weighted Graphs

A pair of vertices is said to be adjacent if and only if there is a edge between them , making e(v,w) for e,w being adjacent.
An egde is said to be incident if it is connected to that vertices , e(v,w) is incident on v,w
These are only for directed graph
Indegree
The number of edges having v as their terminal vertex is called indegree of v
Outdegree
The number of edges having v as their initial vertex is called outdegree of v
For outdegree graphs
We just called it degree - number of edges

Cyclic

  • A path of non-zero length with v as initial and final vertex.
  • These are called cyclic graphs else acyclic graph
  • If no vertices are repeated - Simple Cycle

    • Loop

  • Single edge having connected to and from the same vertex

    • Generally

  • If a vertex has 0 indegree, we define it as the source vertex.
  • If a vertex has 0 outdegree, we define it as the sink vertex.

    • DAGs - Directed Acyclic Graphs

    Articulation point

  • A vertex in an undirected connected graph is an articulation point if and only if removing it and edges throught it disconnects the graph.
  • Removing the articulation point could increase the number of connected components.

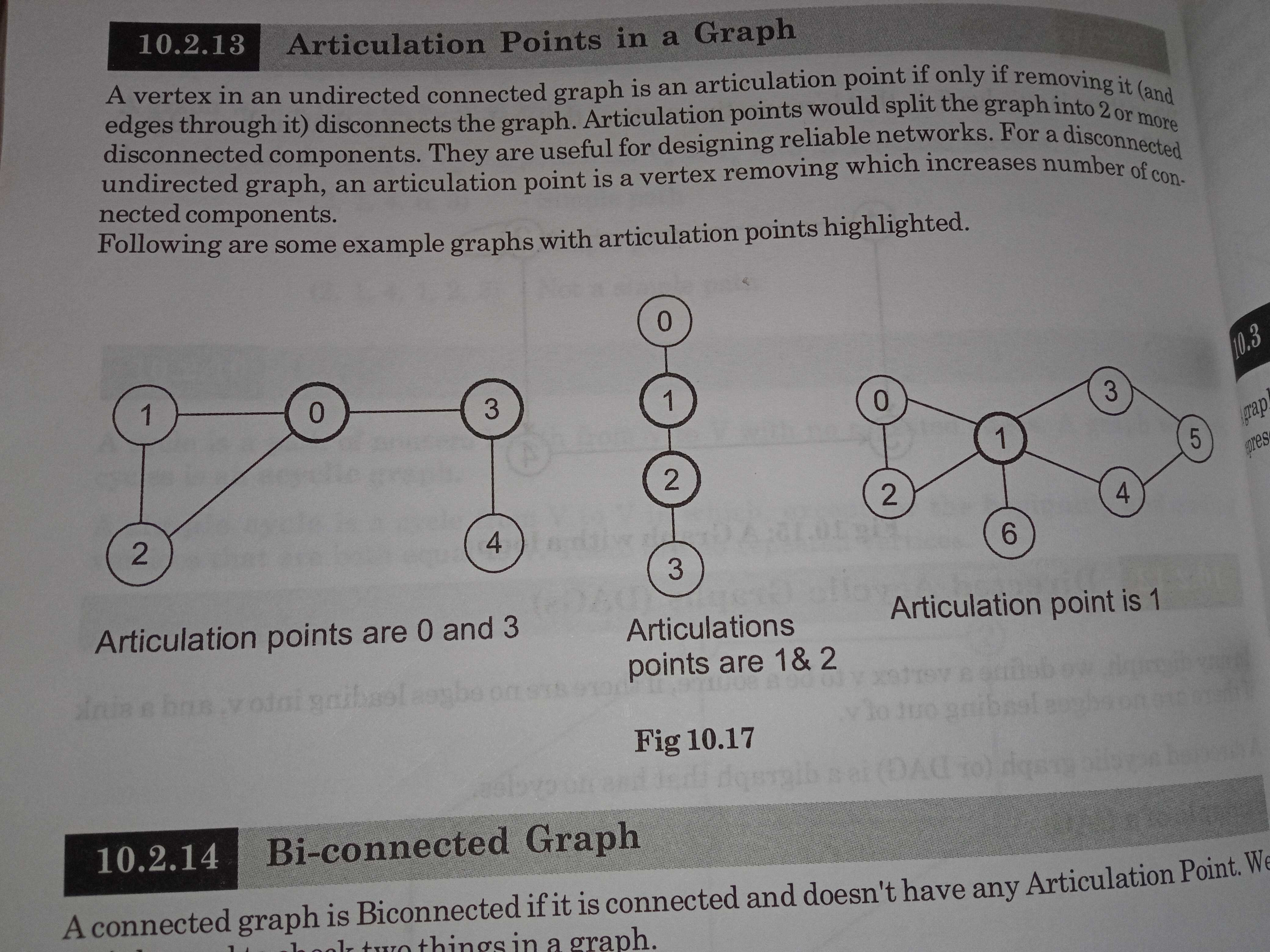

  • ex: example of articulation point

    • BiConnected Graph

    Properties
    1. There is a simple cycle throught any two vertices
    2. There exists two vertex-disjoint path between any two edges
    The above are not to be satisfied for a Biconnected graph with only 2 nodes.But for more than 2 nodes.

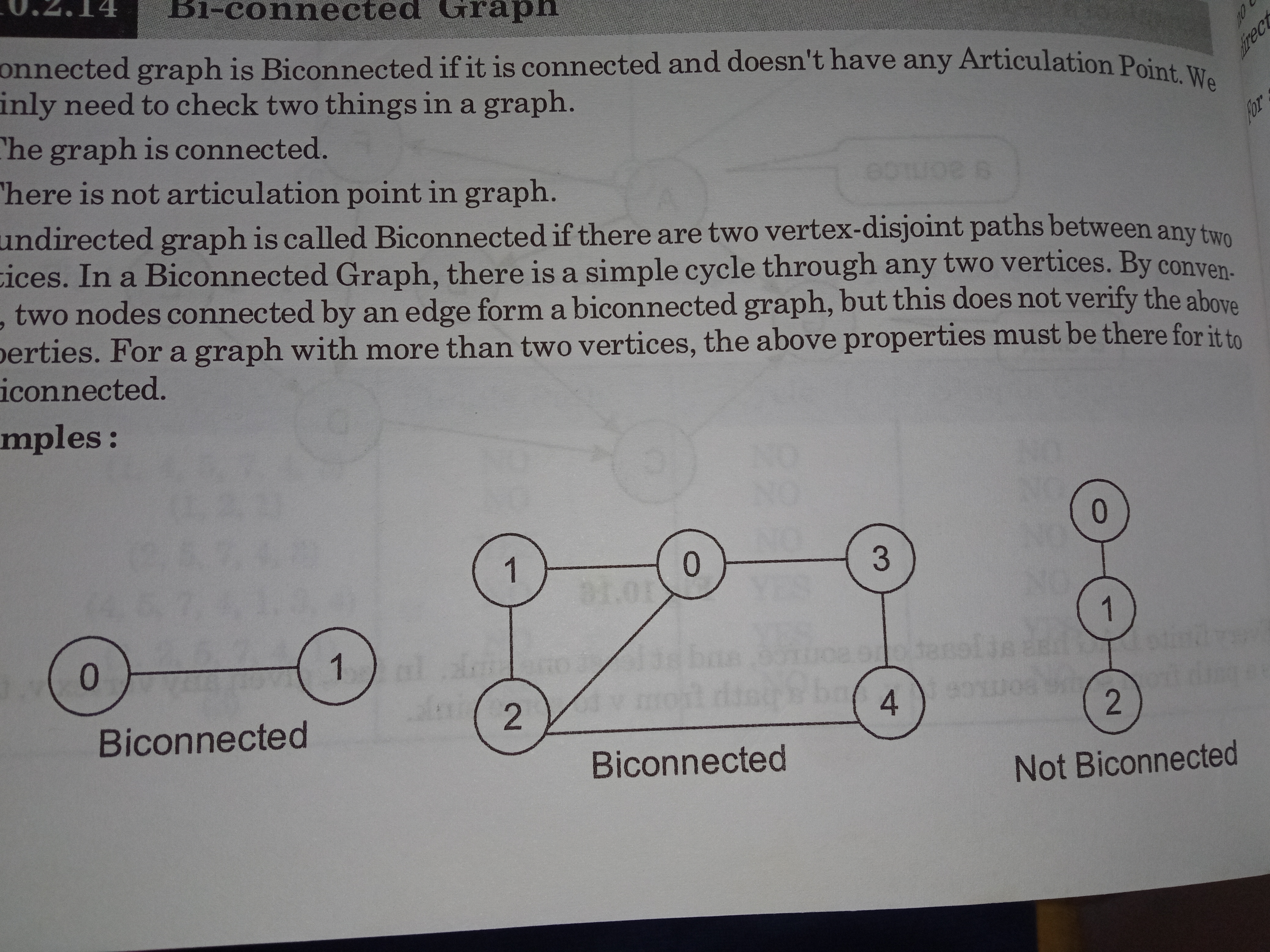

  • ex: example for biconnected graph

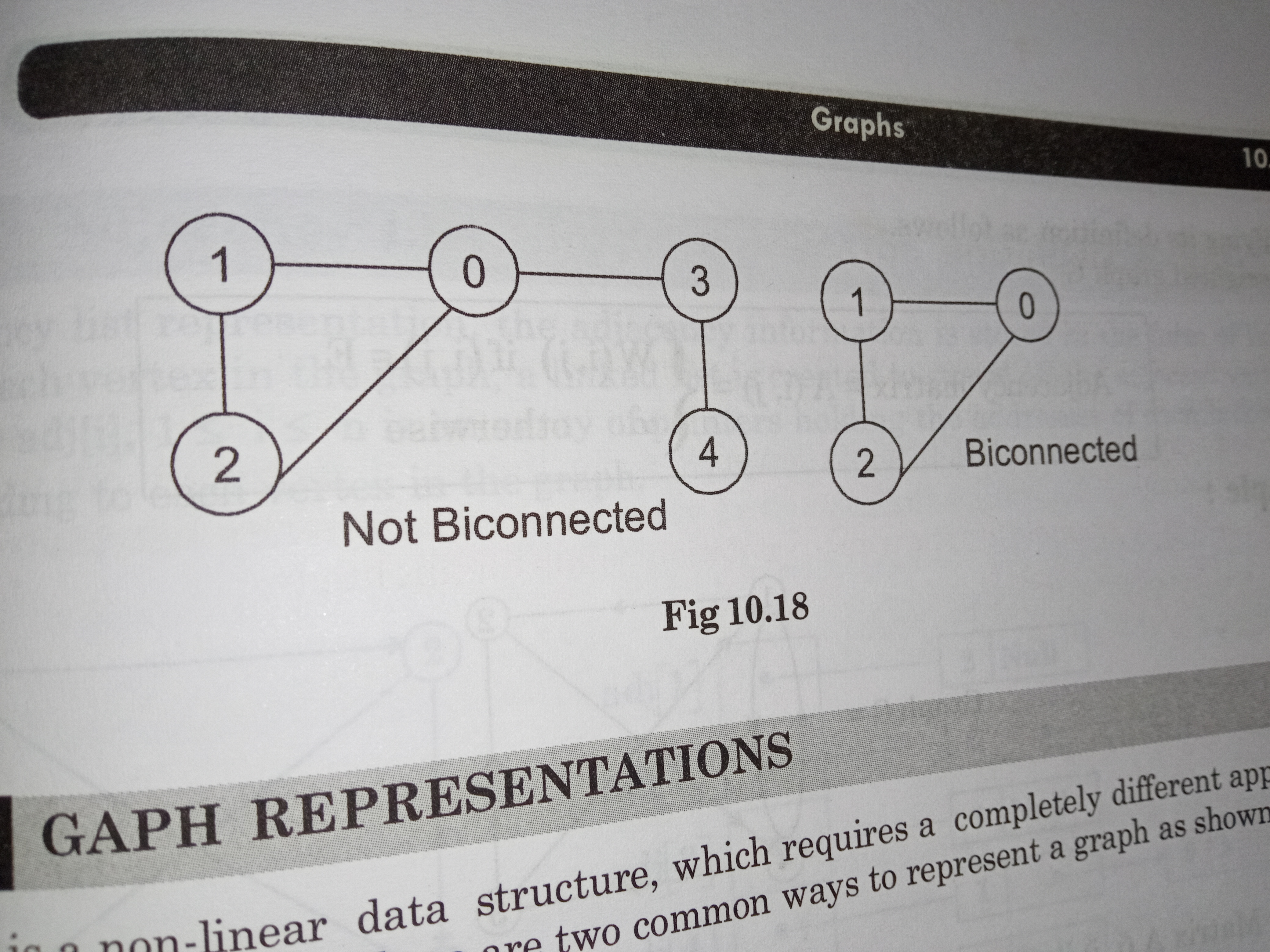

  • ex: example for biconnected graph

    • Representation

    Since a graph is a non-linear DS.
    Representation are done in -
    1. Adjacency Matrix
    2. Adjacency List
    3. Path Matrix

    Adjacency Matrix

    1. Has 'n' rows and 'n' columns
    2. It only contains of 0s and 1s .
    3. 1s where (i,j) has an edge.
    4. Therefore Adjacency Matrix only represent undirected edges.
    5. If the graph is weighted - we could replace 1 by its weight.And 0 by infinity.

    Adjacency List

    1. Each node has a linked list that contains link to nodes that ONLY IT has an direct edge to

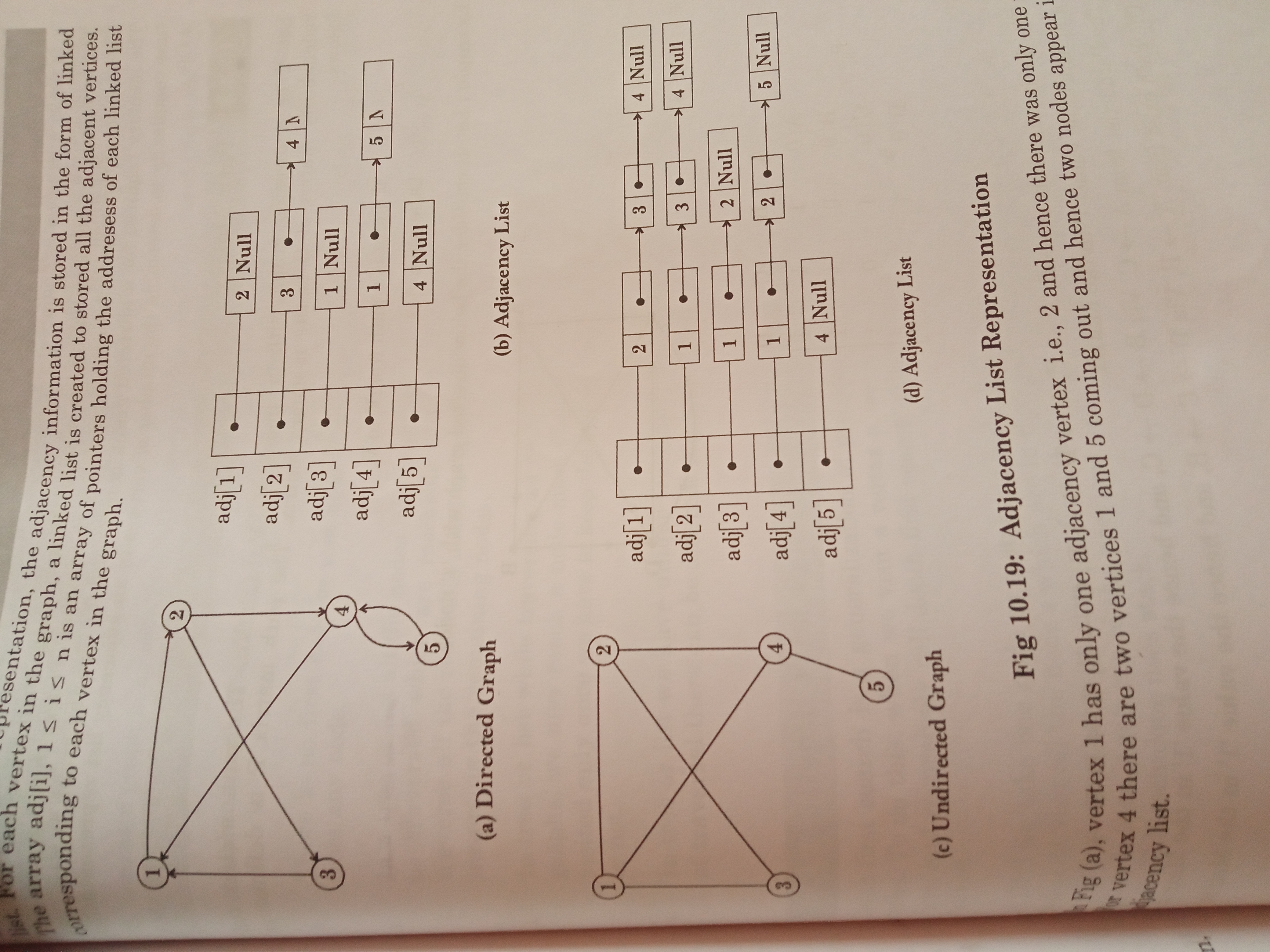

    2. ex: adjacencyList
    3. In a directed list, where n is nodes and e is edges , n=e
    4. In undirected there are 2 nodes in list for every edge , therefore n=2*e

    Path Matrix

    1. Same as Adjacency Matrix
    2. The values are updated even if an indirect edge i.e a path is found bw i,j

    Traversal

    1. There is no first node or root node. Hence, traversal can start from any node
    2. [ unlike trees or list ] In a graph we only traverse to those nodes that are reachable from the initial node, so we have to keep changing our initial node to traverse all reachable paths
    3. [ unlike trees or list ] A single node can be visited more than once. Hence we keep track of status of each node.
    4. [ unlike trees or lists ] Graphs have different sequences for the same technique of traversal.
    5. OBV THOUGHT: ONLY connected graph traversal include all the nodes.

    Depth-First-Search [Recursive or Iterative] [Stack]

    1. Uses stack
    2. Select a node
    3. Traverse on one direction untill reach end
    4. if reach end, go to init node
    5. Search for another path and repeat last 2 steps
    6. if no path - repeat from step 2
    7. Once all nodes are done return
    8. Recursive uses implicity stack while iterative uses a user-defined stack, Learn about this.

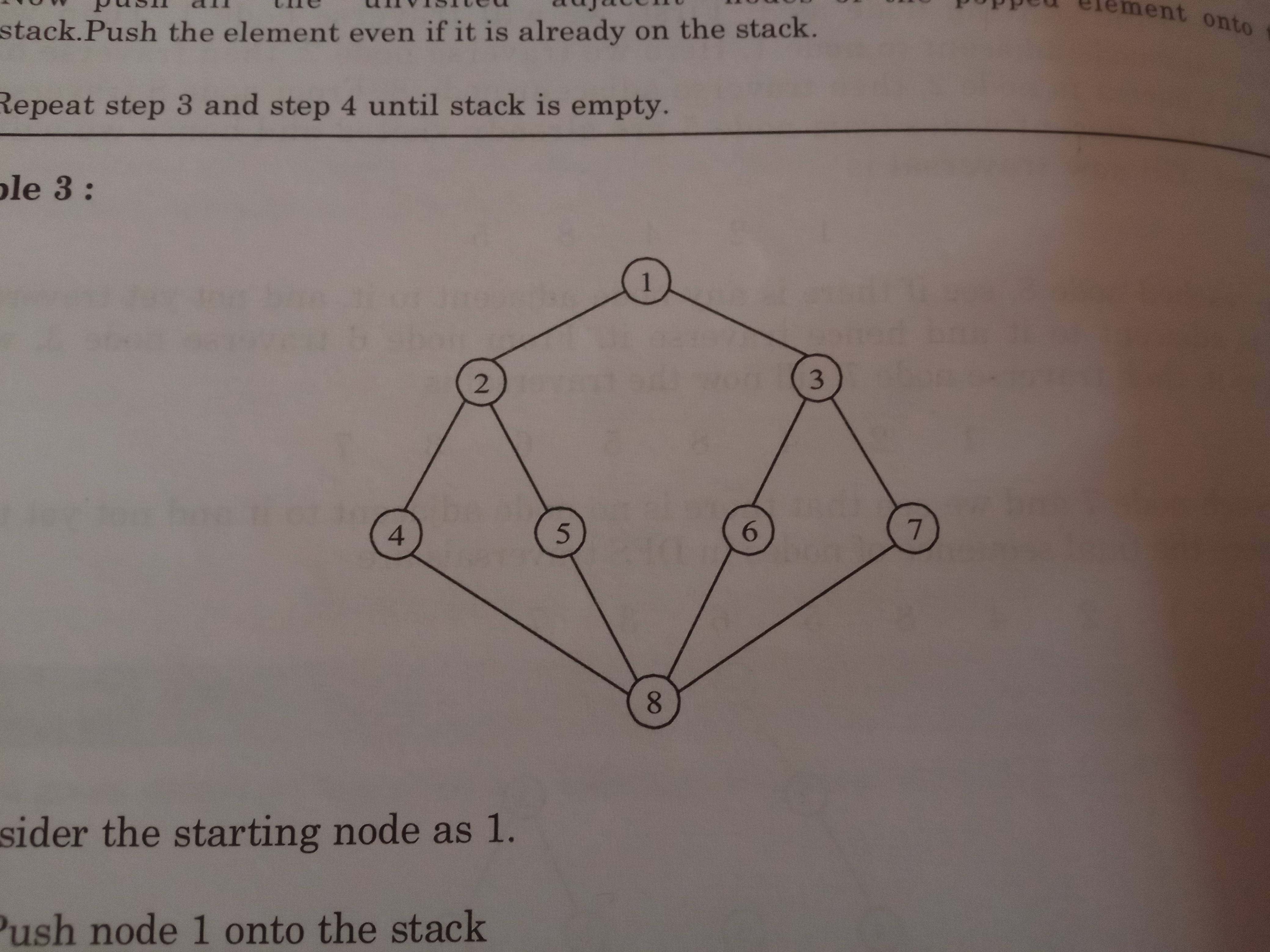

    9. ex: dfs question

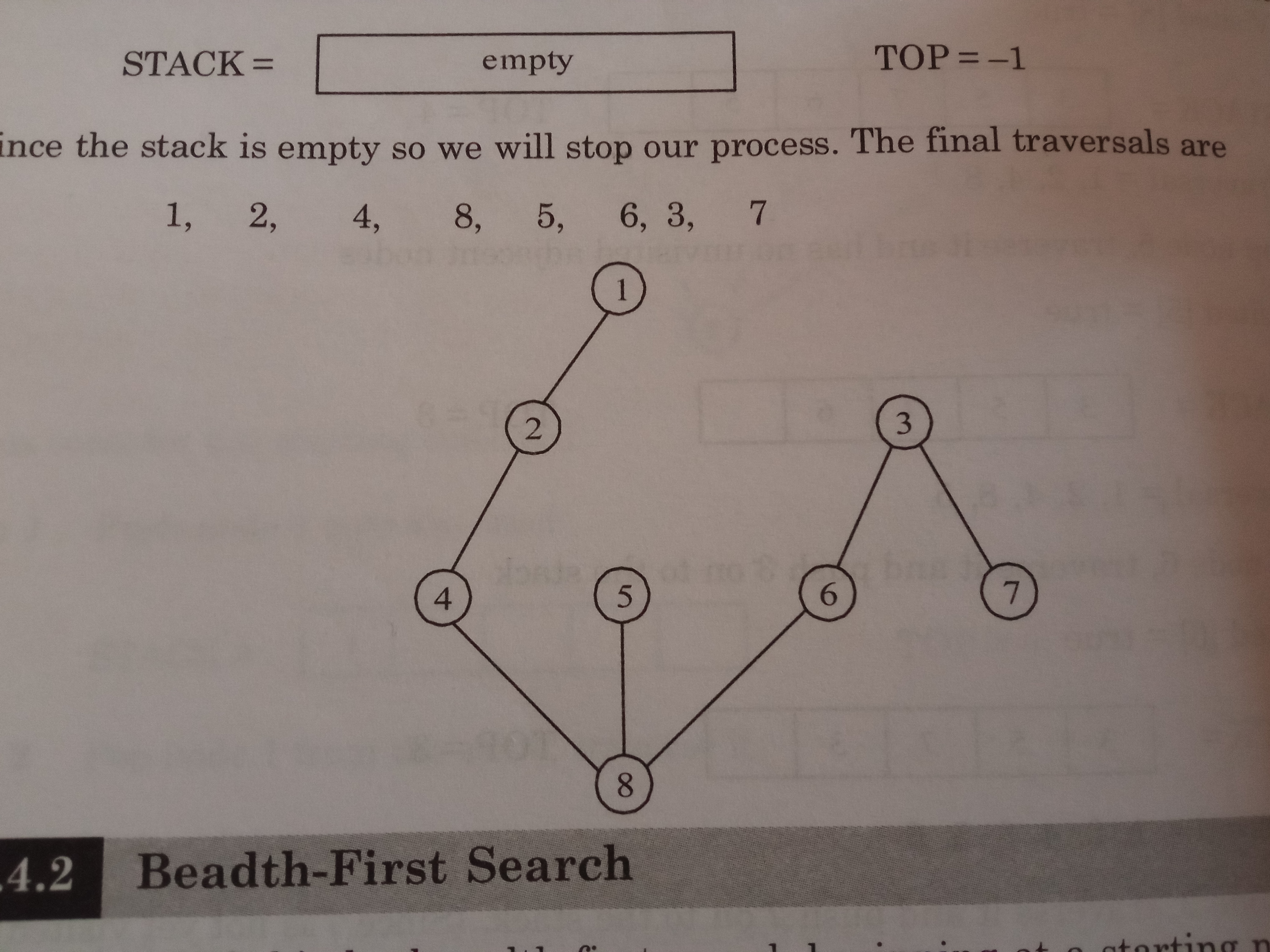

      dfs solution

    Breadth First Search [queue]

  • Pick a node source
  • Traverse the neighbours of source Add it to the queue
  • Traverse the neighbours of neighbours of source Add it to the queue
  • Does backtrack just proceeds with the next node that was considered when first picking the neighbours [ i.e the next node in the queue ]

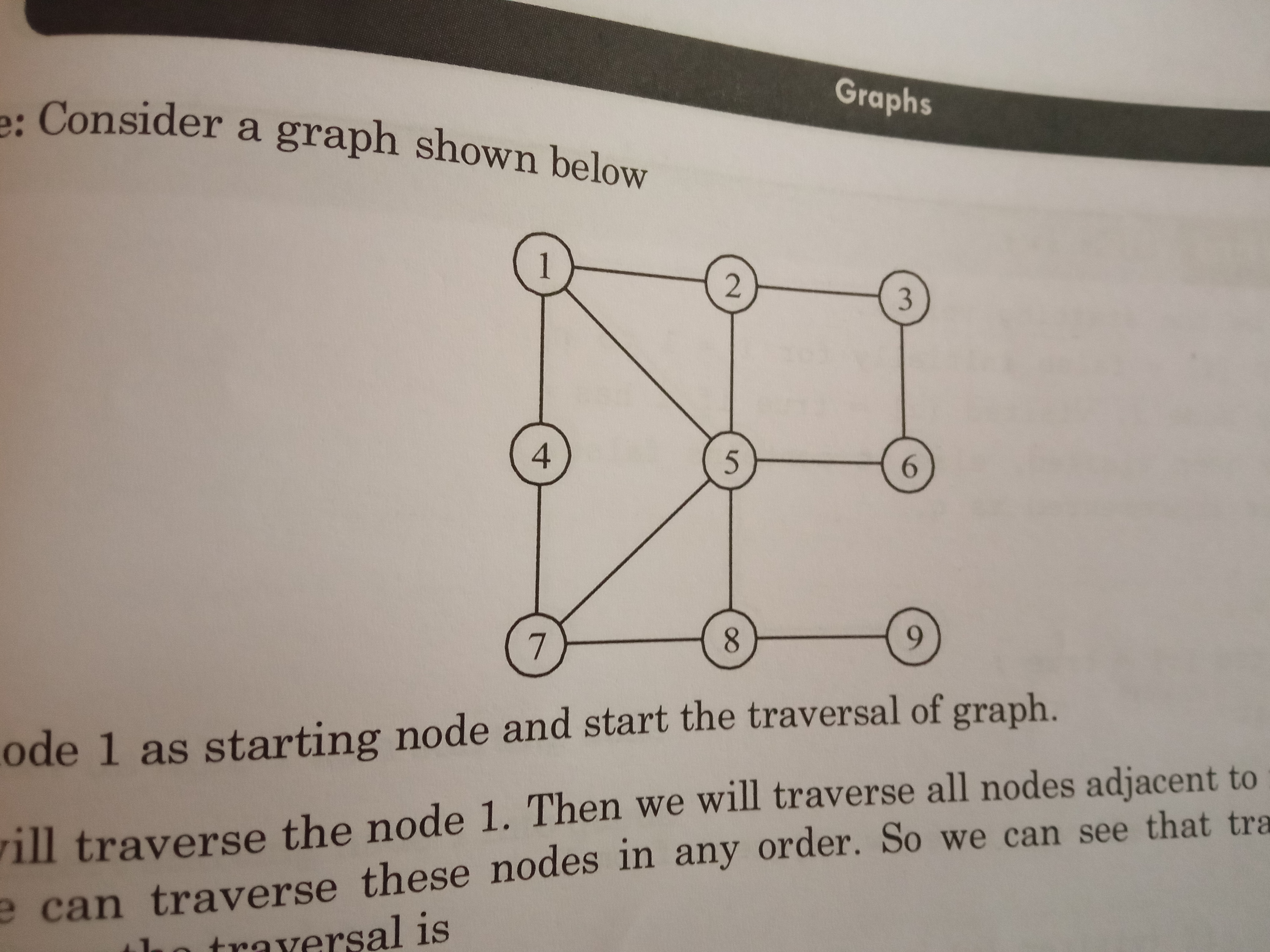

  • ex: bfs question

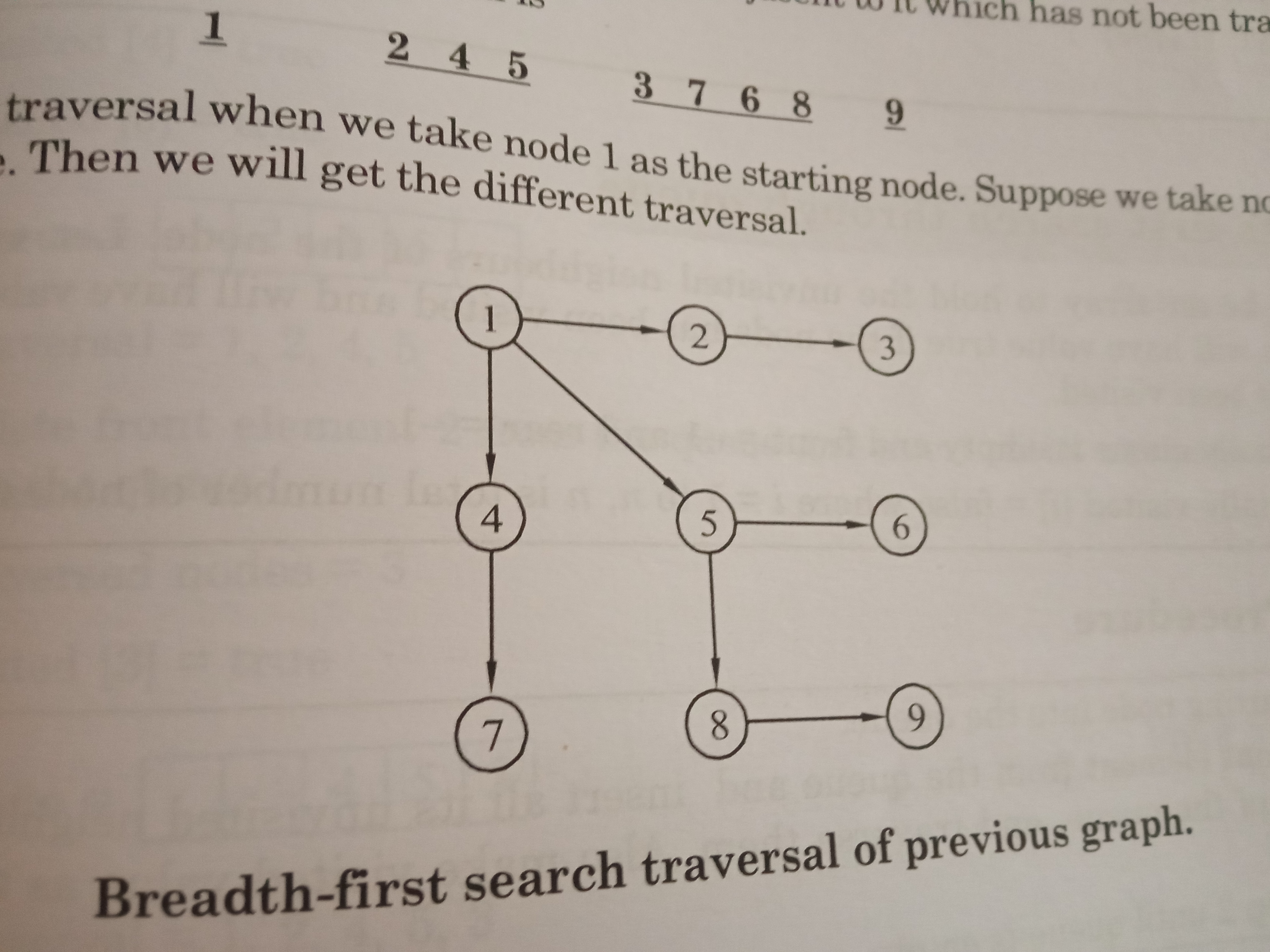

    bfs solution

    • Complexity

    1. Depends on the number of nodes and the representation used to store the graph
    2. For both BFS and DFS - [ n-nodes, e-edges ]

      Time AND Space Complexity

      Adjacency Matrix
      O(n2)
      Adjacency List
      O(n+e)
